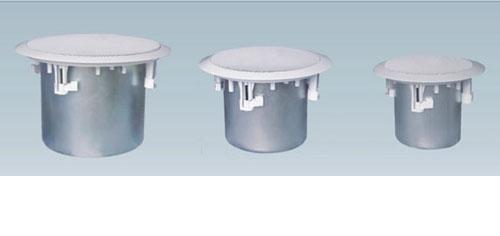

תדר קול - TZ-501\601\801THS

Step 1- Cutout the hole size,either by tracing the cardboard cutout template or with a circular cutter set to the cutou size. Pull the wiring through cutout hole.

Step 2 - Dismantle speaker´s grille.

Step 3 - Insert the speaker into the ceiling and tighten it.Insert the speaker into the ceiling as far as it goes,until the front baffle rim touches the ceiling,
Turn the attachment screws CLOCKWISE to tighten the mounting tabs .the first 3/4 clockwise turn rotates the attachment tabs outward and the remaining turns tighten the speaker DO NOT OVER TIGHTEN.

TZ-801THS
power taps:5/10/20/40W/8V
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:50-20kHz
Dimensions(mm):Ø270x185
Hole for mounting:Ø240
Material(panel):ABS
Material(cover):IRON
Weight(kg):3.1
Speaker units:8"

TZ-601THS
power taps:3.8/7.5/15/30W/8V
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:90-20kHz
Dimensions(mm):Ø230x150
Hole for mounting:Ø200
Material(panel):ABS
Material(cover):IRON
Weight(kg):2.3
Speaker units:6"

TZ-501THS
power taps:2.5/5/10/20W/8V
Line voltage:100V
Sensitivity(1m,1W):88±3dB
Frequency response:100-20kHz
Dimensions(mm):Ø203x145
Hole for mounting:Ø170
Material(panel):ABS
Material(cover):IRON
Weight(kg):1.8
Speaker units:5"
