Descriptions

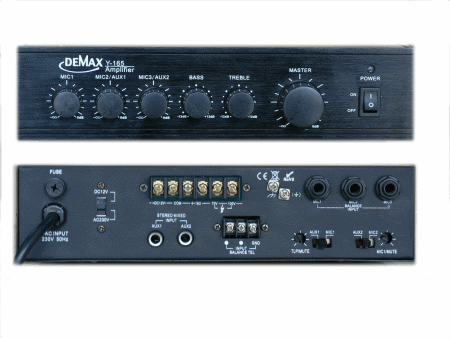

Y-135 Y-165 MIXER Amplifier

Mic1 input by combined connector of 1/4" phone jack, Mic 3 by 1/4" phone jack, Aux2 input by dual RCA, tel input by phoenix connector. Line output by dual RCA type. Mic with Vox priority (with Vox level control) and telephone input with secondary input over all other inputs. 100V, 70V and 4-16ohms speaker output. AC 120V or 230V operation. Mic1-2, Aux1, tel, master volume control and bass/treble tone control. High temp, short circuit and over load protection.

DC 12V

Specifications
Model Y-135 Y-165
Speaker Outputs 70V, 100V & 4¡«16¦¸
Amplifier Section(amp In @ 1KHz,8¦¸ Load Output)
Rated continuous output power (THD 1%) 35W 65W
Rated maximum output power (THD 1%) 45W 80W
Frequency response(At 1KHz Half power output,+3dB) 50Hz¡«18KHz
MIC 1~2 input section(CH1~2 in@1KHz, preamp out)
Input sensitivity/impedance 5mV/600¦¸
S.N. Ratio Better than 62dB
Tone control(Bass:100KHz,Treble:10KHz) + 12dB
AUX 1 input section(AUX in@1KHz, preamp out)
Input sensitivity/impedance 400mV/15K¦¸
S.N. Ratio Better than 76dB
Frequency Response(+3dB) 50Hz¡«18KHz
Tone control(Bass:100KHz,Treble:10KHz) +12dB
Pre amp out 0dBV/600¦¸
Total harmonic distortion Less than 0.5%
Line level output 0.775V/600¦¸
Cooling mode Air cooling
Power Supply DC 12V or ¡«230V/50Hz
Power consumption 65W 85W
Net weight 5.3Kg 6.2Kg
Dimensions 360 ¡ֱ270 ¡ֱ88mm
