Descriptions

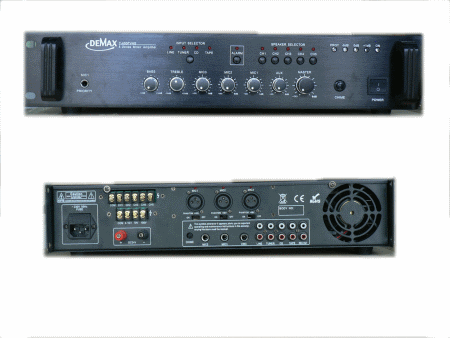

The basic public address 5 zone mixer amplifiers have power ratings from, 120W, 240W, 350W, 450W, 550W to 650W. They are featured of 3 balanced microphone inputs, 2 aux inputs and 2 EMC inputs There are 4 audio source selectors on the front panel .
Priority muting is achieved via EMC1-2 for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.

Features

* Mixer amplifier for paging and background music system
* Rated power from, 120W, 240W, 350W, 450W, 550W to 650W
* 2U rack mount (less than 120W) and 3U rack mount design
* 70V, 100V and low impedance 4-16ohm speaker output
* 5 zone and all zone speaker terminals
* Three balanced Mic inputs
* Mic 1(phone jack) with VOX priority and VOX level on front panel
* Mic 2-3 by XLR type on rear panel with phantom power
* Two Aux Inputs and 2 line inputs for spare use
* Two EMC priority inputs
* EMC1 has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection

Optional
* DC 24V available on less than 550W models
* Panel with/without handhold
* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch

Specifications
Model Y-100FVHS Y-200FVHS Y-300FVHS Y-400FVHS Y-500FVHS
RatedPower Output 120W 240W 350W 450W 550W
Speaker Outputs 70V, 100V & 4¡«16¦¸
Input MIC 1, 2, 3: 5mV-200mV/600¦¸,balanced
AUX 1, 2: 250mV/47K¦¸,Unbalanced
Output 600¦¸, 0.775V
Frequency Response 50Hz¡«15KHz(¡ְ2dB)
S/N Ratio MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB
THD Less than 0.5% at 1KHz, 1/3 rated power
Muting Function MIC 1 overrides other input signals with 0-30dB attenuation
Controls Individual gain controls, power switch
Bass: ¡ְ10dB at 100Hz, Treble: ¡ְ10dB at 10KHz
Indicators Power LED, LED level meter, protect and temp
Protection AC fuse, short-circuit and high temperature
Power Supply ¡«110V/60Hz or ¡«230V/50Hz, DC 24V optional
PowerConsumption 200W 400W 500W 600W 750W 900W
Weight 10Kg 17.5Kg 19.5Kg 21.8Kg 23.1Kg 24.5Kg
Dimensions 484x350x88mm 484x435x132mm
Finish Panel: aluminum plate,black
ZCase: steel plate
